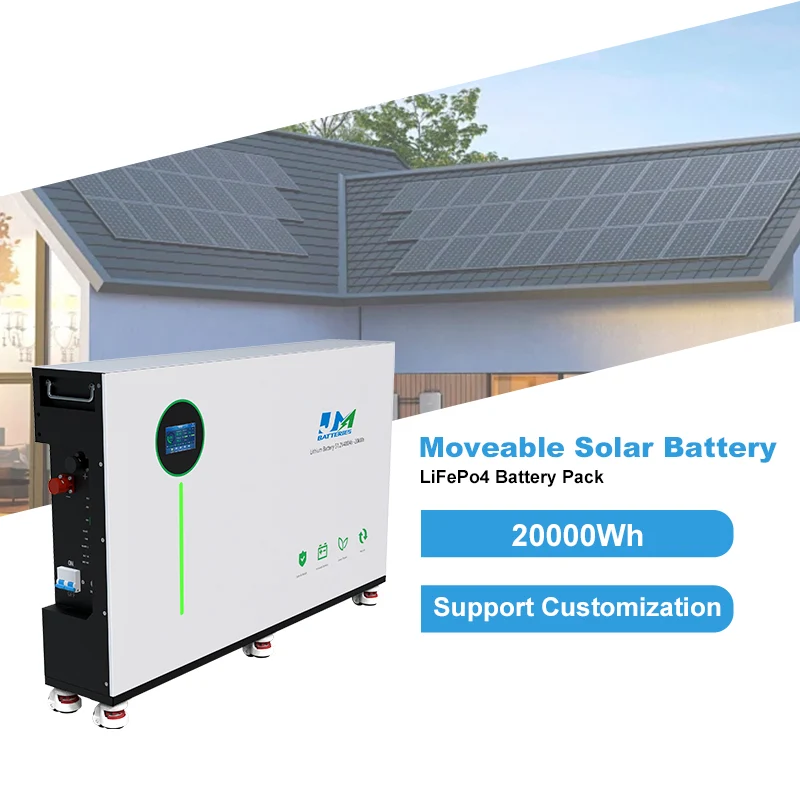

JM Solar Battery Price 20kwh Battery 48v 400ah Lifepo4 Battery for Battery System

Product Summary：

• Portability & Installation:
  • Ultimate portability and flexibility
  • Simple, convenient setup for hassle-free use
• Design & Expandability:
  • Attractive appearance
  • Supports parallel connection (max. 15 units)
• Performance & Eco-friendliness:
  • LiFePO4 battery pack (20.48kWh energy)
  • Pollution-free; cycle life exceeding 8000 times (long lifespan)
• Safety & Intelligence:
  • JBD-200A-16S intelligent BMS (prevents overcharging, overdischarging, overheating)
  • LCD + built-in WiFi for real-time monitoring
  • Customizable display (touch/push-button) & Bluetooth/WiFi
• Compatibility:
  • Works with most well-known inverters (e.g., DEYE, Growatt, PYLONTECH)
• Specs & Warranty:
  • Max charge/discharge current: 200A (each)
  • Operating/storage temp: -20ºC~60ºC
  • Dimensions: L1130W424H200mm; Weight: 100kg
  • 10-year warranty
• Customization:
  • Customizable capacity, specs, and OEM/ODM services
  • Customizable communication modes (CAN/RS485/R232)

20kwh Battery Backup Product Parameters：

Model	JM-51.2V400Ah-LED
Nominal Voltage	51.2V
Rated Capacity	400Ah
Battery Energy	20.48kWh
Operating Voltage Range	48V~58.4V
BMS	JBD-200A-16S
Support Inverter Brands	DEYE, Growatt, PYLONTECH, SMA, MUST, VICTRON,GOODWE,   Also Support Customized Other Inverter Brands
Battery Type	LiFePO4 Battery Pack

Maximum Charging Current	200A
Maximum Discharge Currentt	200A
Product Size	L1130*W200*H742 mm
Weight	162kg
Battery Cycle Life	≥8000 Cycles
Storage / Working Temperature	-20 ºC~60 ºC
Warranty	10 Years
Parallel Connection Quantity	15 Units MAX

Communication Mode	CAN / RS485 / RS232
Display	Touch Display / Push-Button Display
Bluetooth / WiFi	Support Customized

20kwh Battery Backup Detailed Photos：

JM Company Profile：

FAQ：

What is the current 20kWh battery price, and is it a worthwhile investment for 2026?

The 20kwh battery price has become increasingly competitive, offering one of the best "price-per-kilowatt-hour" ratios in the energy storage market. By investing in a 48v 400ah LiFePO4 battery, homeowners can significantly reduce their levelized cost of energy (LCOE). Given the rising grid electricity rates and the shift toward VPP (Virtual Power Plant) programs, this system typically pays for itself within 5 to 7 years through peak-shaving and solar self-consumption.

 How long will a 20kWh battery last during a power outage?

One of the most common questions is: "How long will a 20kwh battery last?" For a standard 3-bedroom home, a 20.48kWh system provides substantial resilience:

• Essential Loads (600W avg): Up to 34 hours (Lights, fridge, Wi-Fi, and security).

• Moderate Loads (1500W avg): Approximately 13.5 hours (Essentials plus TV, laptop, and microwave).

• High Loads (3000W avg): Roughly 6.8 hours (Essentials plus central A/C or electric heating). With a 20kwh battery backup for home, you are effectively protected against multi-day grid failures when paired with solar charging.

Is 20kWh enough to run a house off-grid?

Yes, for most modern energy-efficient homes, 20kWh is enough to run a house comfortably off-grid. However, it requires a balanced "Energy Budget." To achieve total independence, you should pair this 48v 20kwh lifepo4 battery with a solar array capable of producing at least 25–30kWh of energy daily to ensure the battery is replenished while simultaneously powering the home.

How many solar panels are needed to charge a 20kWh battery?

To calculate how many solar panels to charge a 20kwh battery, you must consider your "Peak Sun Hours."

• In a region with 5 peak sun hours, you would need roughly 5kW to 6kW of solar panels to fully charge the battery from 0% to 100% in a single day (allowing for system efficiency losses).

• The JM 20kWh system’s BMS supports high-current charging, allowing you to maximize large solar arrays for rapid replenishment.

Why choose a 48V 400Ah LiFePO4 architecture over high-voltage systems?

The 48v 400ah lifepo4 battery is the industry standard for residential safety and DIY-friendly installation. Unlike 400V+ high-voltage systems, a 48V battery system is safer to handle, requires less complex insulation, and offers superior compatibility with a vast range of off-grid and hybrid inverters like Deye, Victron, and Growatt. It provides the perfect balance between high capacity and low-voltage safety.

Can I expand my 20kWh solar energy storage system later?

Absolutely. This system is designed for expandable solar energy storage. Our JM-51.2V400Ah units support parallel connection of up to 15 units. This means you can start with a 20kwh battery storage unit today and scale up to 300kWh+ in the future, making it a future-proof solution for both residential and light commercial (C&I) applications.
