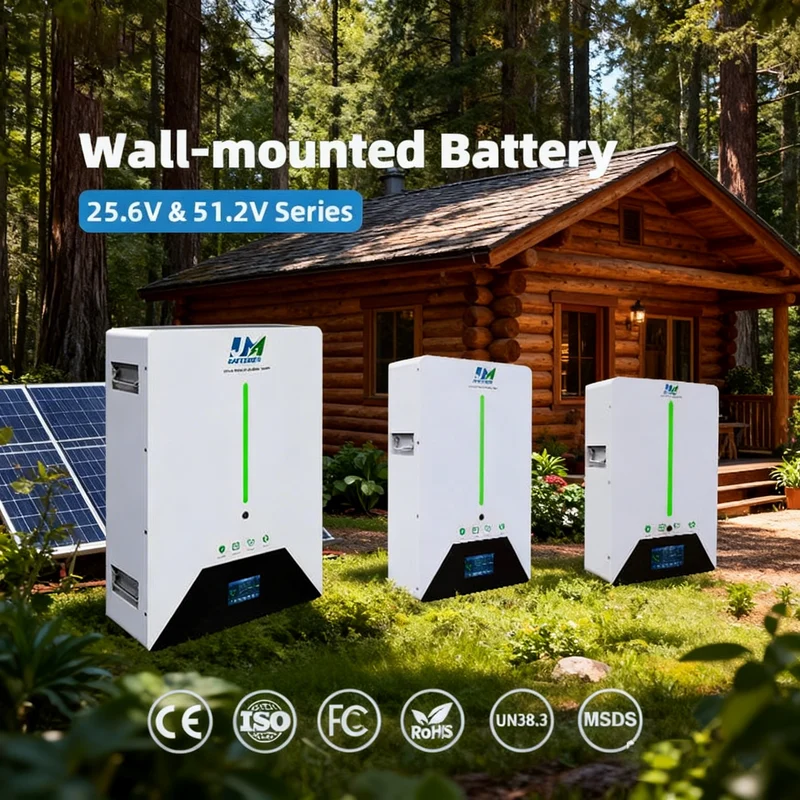

JM 3kWh 5kWh 10kWh Powerwall Battery 48V 100Ah 200Ah Wall Mounted Lithium Battery For Off Grid Cabin

Product Summary

• Advanced Battery Chemistry: Utilizes LiFePO4 technology, ensuring high efficiency, stability, and safety, with a pollution-free design and an ultra-long cycle life of over 8000 cycles.
• Easy Installation & Scalability: Features simple and convenient installation for hassle-free operation; supports parallel connection of up to 15 units to significantly expand energy storage capacity.
• Smart Monitoring System: Equipped with an LCD display and built-in WiFi (Bluetooth/WiFi customization available), enabling real-time monitoring of battery status.
• Wide Inverter Compatibility: Compatible with major inverter brands including DEYE, Growatt, PYLONTECH, SMA, MUST, and GOODWE, with customization options for other brands.
• Customization Services: Offers OEM and ODM solutions, including customizable capacity, logo, display type (touch/push-button), and communication modes (CAN/RS485/RS232).
• High Power Specifications: Boasts a nominal voltage of 51.2V, rated capacity of 200Ah (10.24kWh energy), and maximum charge/discharge current of 200A each, with an operating voltage range of 40V-58.4V.
• Durable & Reliable Design: Operates in temperatures from -20°C to 60°C, backed by a 10-year warranty; product dimensions are L710*W530*H235 mm with a weight of 93kg.

Product Parameters

Model	JM-51.2V-LED
Nominal Voltage	51.2V
Rated Capacity	100Ah/200ah
Battery Energy	5.12kWh
Operating Voltage Range	20V-29.2V
BMS	JBD-100A-16S
Support Inverter Brands	DEYE, Growatt, PYLONTECH, SMA, MUST,GOODWE,   Also Support Customized Other Inverter Brands
Battery Type	LiFePO4 Battery Pack

Maximum Charging Current	100A
Maximum Discharge Currentt	100A
Product Size	L610*W360*H178 mm
Weight	110g
Battery Cycle Life	≥8000 Cycles
Storage / Working Temperature	-20 ºC~60 ºC
Warranty	10 Years
Parallel Connection Quantity	15 Units MAX

Communication Mode	CAN / RS485 / RS232
Display	Touch Display / Push-Button Display
Bluetooth / WiFi	Support Customized

 Product Parameters:

Company Profile:

Dongguan JM New Energy Technology Co., Ltd was founded in 2017 and is located in Dongguan, China. We have a general investment of 12 millions US dollars and a plant area of more than 28000 square meters in 4 floors Industry Park with more than 80 workers and several professional teams.

Dongguan JM New Energy Technology Co., Ltd has abundant financial resources. As a 10 years professional solar Lithium battery packs supplier, we have excellent teams who focus on product development & design, quality control & inspection, company and marketing running. In order to supply the satisfactory solar battery products and services, we have built a modern quality management system which is in strict accordance with international standards. Besides, because of large overseas markets, all of our products have got MSDS, UN38.3, CE, RoHS, ISO and IEC certificates.

JM New Energy Products includes Lithium Ion Battery Cells, Lithium Ion Battery Packs, Wall Mounted Solar Battery, Rack Cabinet Battery System, High Voltage Energy Storage System and other customized Solar Energy Storage System Products.

If you have any new ideas or requirements on the solar battery products, please feel free to contact us. We are glad to work together with you and bring you the satisfied products.

FAQ:

1. Who are we?
We are based in Guangdong, China, start from 2017,sell to North America(30.00%),Africa(15.00%),South America(10.00%),Western Europe(10.00%),Southern Europe(10.00%),Northern Europe(10.00%),Eastern Europe(10.00%),Southeast Asia(5.00%). There are total about 11-50 people in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.What can you buy from us?
Lithium Battery, Lithium Battery Pack, Solar Battery, Solar Energy Storage Battery, Custom High Voltage Battery

4. Why should you buy from us not from other suppliers?
Dongguan Jiameng New Energy Technology Co., Ltd is a professional manufacturer of Solar Energy Storage products , LiFePO4 battery packs, we are a 6 years enterprise integrating product design,a research and development, manufacturing, sales and service.

5. What services can we provide?
Accepted Delivery Terms: FOB,EXW,DDP,CIF；
Accepted Payment Currency:USD,EUR,GBP,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,Western Union,Cash;
Language Spoken:English,Chinese
