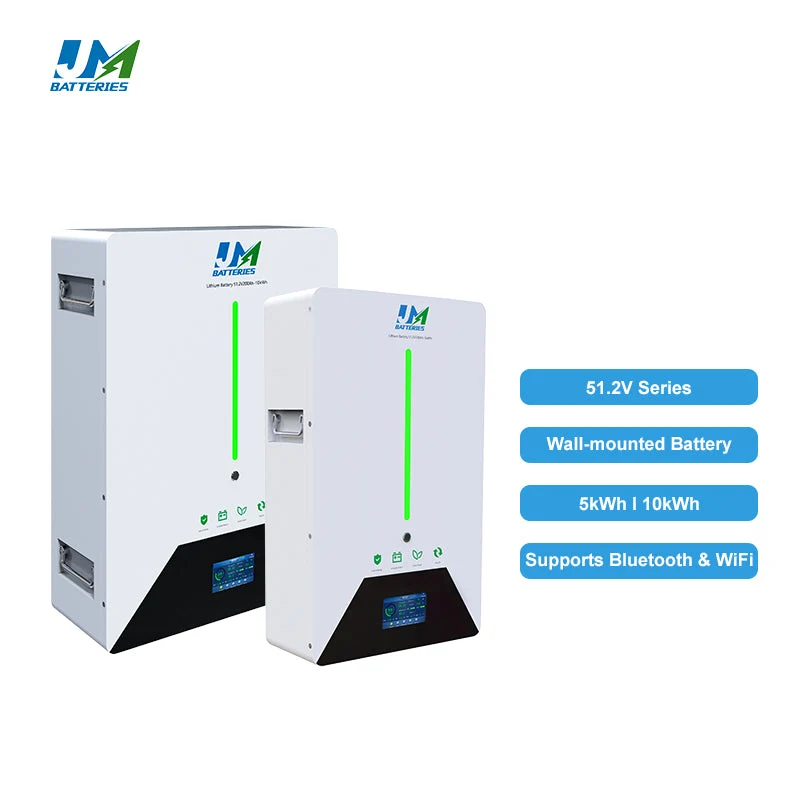

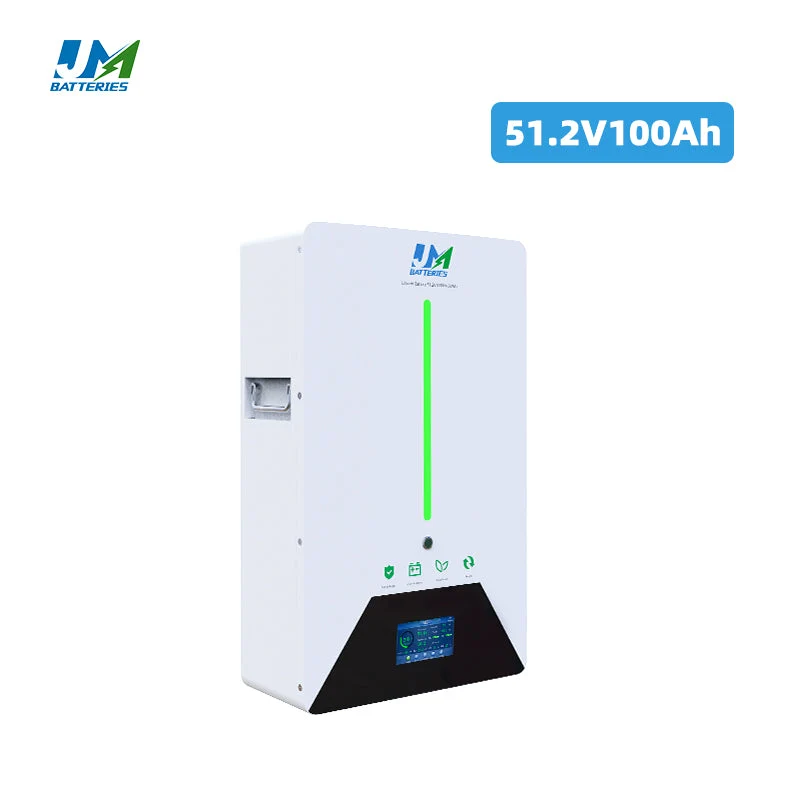

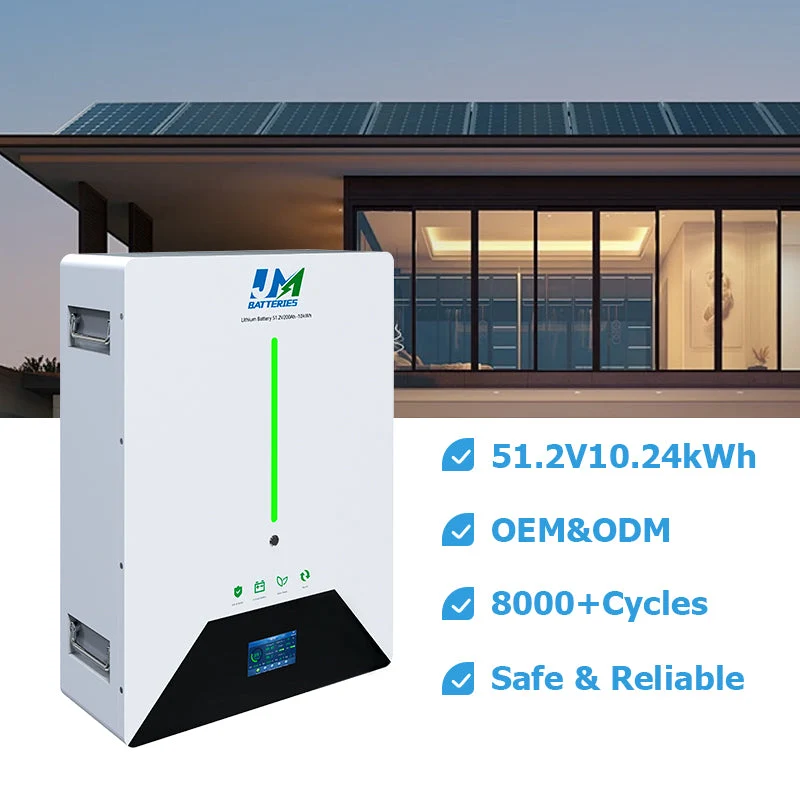

51.2V 200AH 10KWH LiFePO4 Home Solar Energy Storage System for UPS

Product Summary：

• Advanced Battery Chemistry: Utilizes LiFePO4 technology, ensuring high efficiency, stability, and safety, with a pollution-free design and an ultra-long cycle life of over 8000 cycles.
• Easy Installation & Scalability: Features simple and convenient installation for hassle-free operation; supports parallel connection of up to 15 units to significantly expand energy storage capacity.

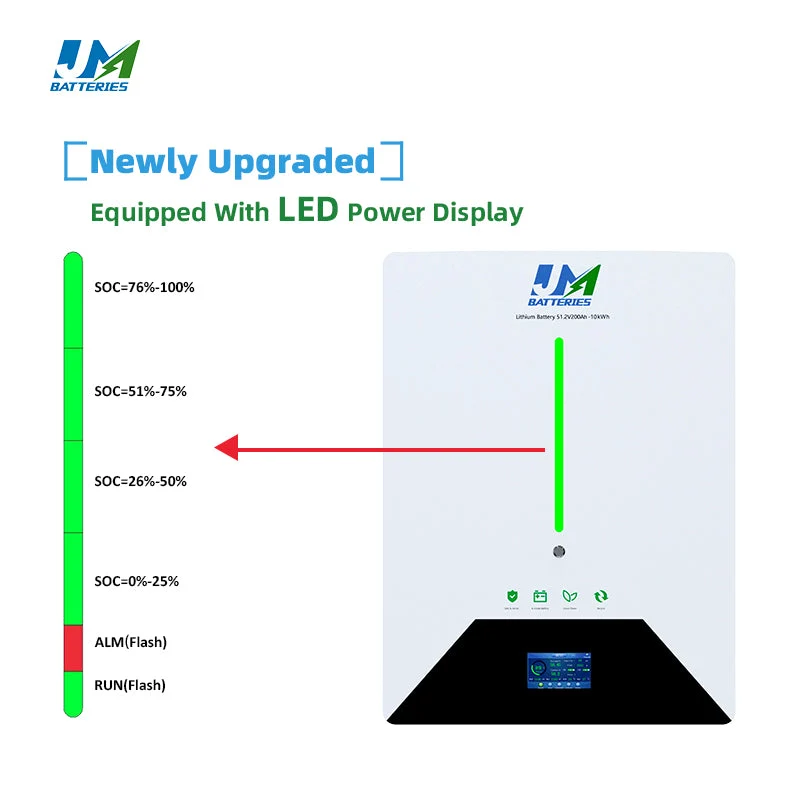

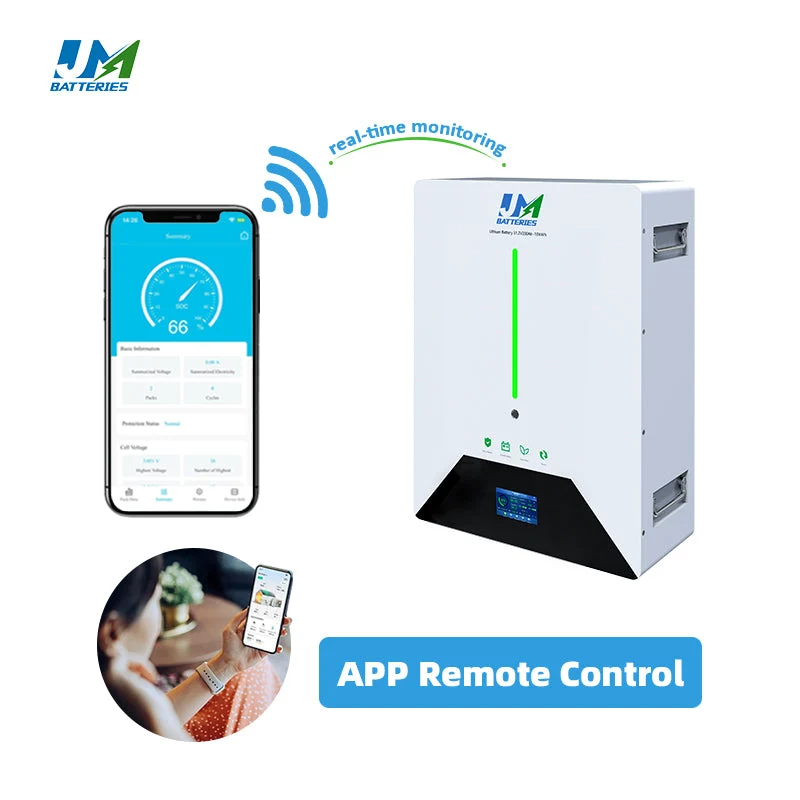

• Smart Monitoring System: Equipped with an LCD display and built-in WiFi (Bluetooth/WiFi customization available), enabling real-time monitoring of battery status.
• Wide Inverter Compatibility: Compatible with major inverter brands including DEYE, Growatt, PYLONTECH, SMA, MUST, and GOODWE, with customization options for other brands.
• Customization Services: Offers OEM and ODM solutions, including customizable capacity, logo, display type (touch/push-button), and communication modes (CAN/RS485/RS232).
• High Power Specifications: Boasts a nominal voltage of 51.2V, rated capacity of 200Ah (10.24kWh energy), and maximum charge/discharge current of 200A each, with an operating voltage range of 40V-58.4V.
• Durable & Reliable Design: Operates in temperatures from -20°C to 60°C, backed by a 10-year warranty; product dimensions are L710*W530*H235 mm with a weight of 93kg.

Product Parameters：

Model	JM-51.2V200Ah-LED
Nominal Voltage	51.2V
Rated Capacity	100Ah/200ah
Battery Energy	5.12kWh
Operating Voltage Range	20V-29.2V
BMS	JBD-100A-16S
Support Inverter Brands	DEYE, Growatt, PYLONTECH, SMA, MUST,GOODWE,   Also Support Customized Other Inverter Brands
Battery Type	LiFePO4 Battery Pack

Maximum Charging Current	100A
Maximum Discharge Currentt	100A
Product Size	L610*W360*H178 mm
Weight	110g
Battery Cycle Life	≥8000 Cycles
Storage / Working Temperature	-20 ºC~60 ºC
Warranty	10 Years
Parallel Connection Quantity	15 Units MAX

Communication Mode	CAN / RS485 / RS232
Display	Touch Display / Push-Button Display
Bluetooth / WiFi	Support Customized

Detailed Photos

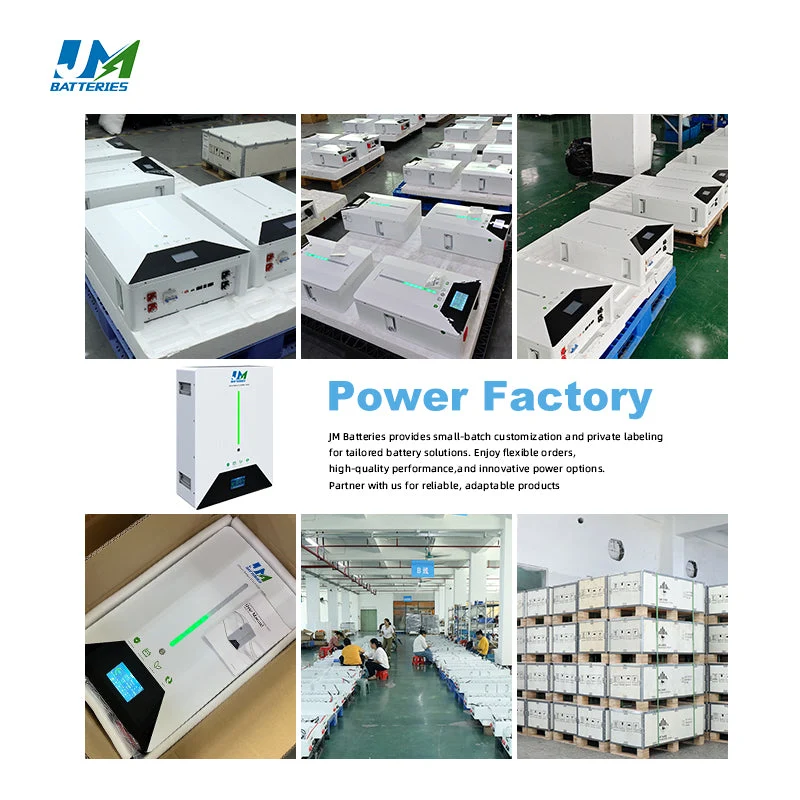

Company Profile

FAQ

What customization services do you offer?

The company offers ODM (Original Design Manufacturer) services, including full customization, minor modifications, and sample-based customization.

What cells do your batteries use? How is safety ensured?

Batteries use high-quality cells from brands like Gotion, BYD, and REPT. They are equipped with intelligent BMS from JBD, TDT, etc., providing protection against overcharge, over-discharge, over-current, short circuit, and overheating.

What is the warranty and cycle life?

Batteries come with a 10-year warranty; BMS has a 3-year warranty. For LFP cells, cycle life typically exceeds 8,000 cycles at 80% capacity retention.

Can samples be provided?

Yes, JM Batteries offers sample-based customization services. You can provide your specific requirements or reference samples, and we will evaluate them and proceed with sample production.

What is the lead time?

Standard products: 3 weeks. Customized products: 45-60 days after deposit receipt.

What certifications are available?

Products can be certified for export with CE, IEC, UN38.3, RoHS, etc., and comply with global market standards.

Do you handle shipping and customs?

Yes, based on customer needs, the company offers EXW, FOB, CIF, or DDP terms and can recommend reliable logistics and customs agents.

What if there's a problem with the product after delivery?

Contact after-sales support via the purchase channel, provide order number, description, and evidence. Services include remote technical guidance, part replacement, or repair.
